Guzzi Sidecar

  Important Announcement

THIS IS NOT!!!! THE ORIGINAL RATBIKE.ORG, BUT AN ARCHIVE FOR THOSE WHO CAN'T LIVE WITHOUT IT.

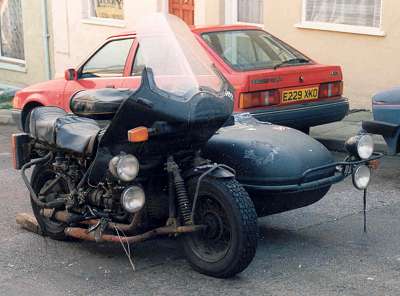

front

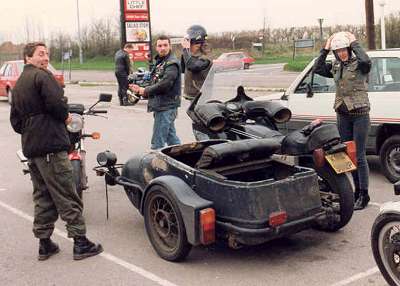

Here's my old Guzzi, 145x14 studded snow pattern car tyres, car rims dimpled & pierced to lace onto Guzzi spoked hubs, monoshocked, leading link forks & floating calipers set to give anti-dive, left hand exhaust extended to the right hand side, Watsonian Palma sidecar widened 7'' and chassis cut & lowered to fit 16'' wheel, towball, battery from a Daimler Double Six, rear lights from a Ford D10 (I think) lorry, all the electrics & coils put into weatherproof aluminium boxes by the saddle, Honda switchgear, Oxford Motorcycle Engineering u/j bearing conversion after the old uj broke and smashed its way out of the swinging arm. Had trouble getting the first MOT because the tester said the symmetrical head/spotlights made it look like a lorry at night (and so what's the problem I replied?). The last pic shows it just before breaking, 15'' car tyres for summer now fitted and different lights and GL1100 seat. Engine/gearbox went to Mik in Germany, chair to a guy in London, I've kept the frame.

Ian

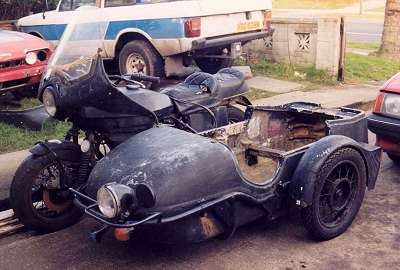

roadside

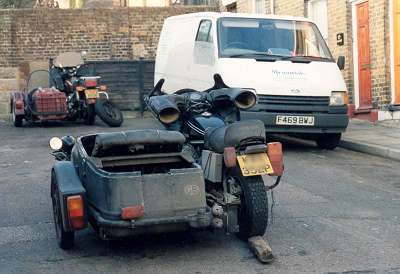

back
front
